10-150ml Rotary Cup Filling Sealing Machine 1200-3600 Cups / H Big Capacity

Name: 10150ml Rotary Cup Filling Sealing Machine 12003600 Cups H Big Capacity
Brand: Npack
Price: 9 USD

10-150ml Rotary Cup Filling Sealing Machine 1200-3600 Cups / H Big Capacity Manufactures

Place of Origin : Shanghai, China (Mainland)

Brand Name : Npack

Certification : CE&ISO

Supply Ability : 10 Set/Sets per Month

Packaging Details : Automatic rotary cup filling sealing machine packed with standard wooden case

MOQ : 1 Set/Sets

Price : $9,000.00 - $14,000.00 / Sets

Packaging Type : Cartons, Case

Packaging Material : Wood

Type : Filling Machine

Condition : New

Application : Food, Medical, Chemical

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V

Power : 1.3-2.5kw

Dimension(L*W*H) : 900*1200*1700mm

Weight : 450 kg

Name : Automatic rotary cup filling sealing machine

Product name : rotary cup filling sealing machine

Function : Auto

Bottle type : Cap

Warranty : 12 Months

Material : SUS304/316

Capacity : 1200-3600cups/h

Model : ARFS-1A

Filling range : 2-50ml 10-150ml

Other name : Vacuum filling sealing machine

After-sales Service Provided : Overseas service center available

Port : shanghai port

Contact Now

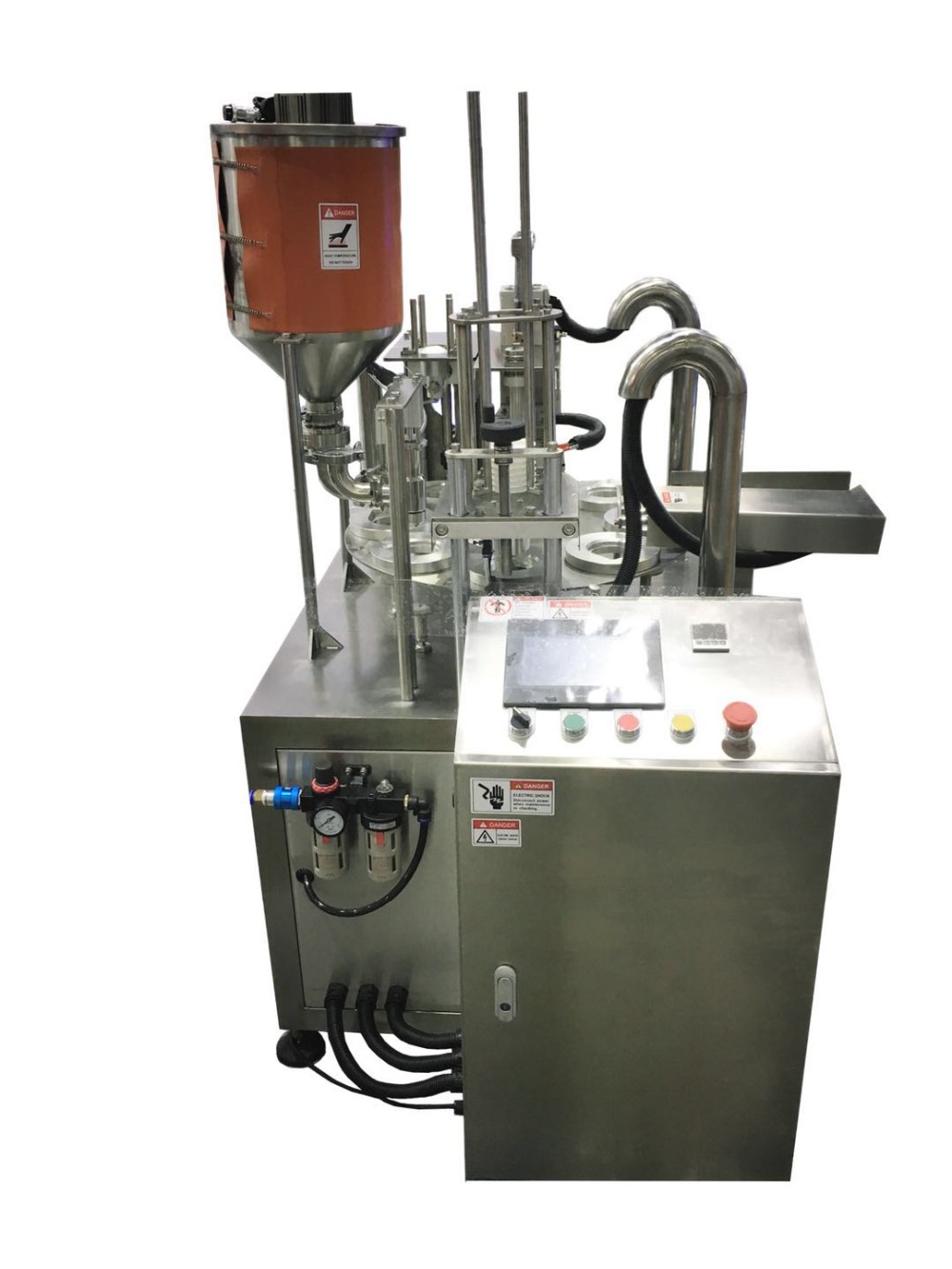

Automatic Rotary Cup Filling Sealing Machine

This machine is widely used to the food industry, such as milk, yogurt, mineral water, jelly, oil, tea etc.
It is total is made by stainless steel 304 and anodized aluminum alloy which is produced in strict accordance with the food industry hygiene standards.

► Specifictions

Model	ARFS - 1A	ARFS - 2A	ARFS - 3A
Voltage	1P 220v 50hz or customize
Power	1.3kw	1.8kw	2.5kw
Capacity	1200 cups/h	2400 cups/h	3600 cups/h
Volume	20-100ml,50-250ml,100-500ml optional
Filling error	≤1%
Seal temperature	0-300℃
Seal size	≤95mm or customize
Seal Material	roll film or premade al-foil lids
G.W.	450kg	650kg	850kg
Packing size	900×1200×1700mm	1100×1300×1700mm	1300×1500×1700mm

► Features
1. Mitsubishi PLC and touch screen for control and operation, intuition and stable.
2. Servo driven system,high capacity and no spatter, easy maintain
3. High quality components from Airtac, Mitsubishi,Omron, Schneider, Chnt etc.
4. Up and down double sealing system ensures the perfect heat sealing quality(specially design for aluminum foil cup).
5. It is total made by SUS304 and anodized aluminum alloy.
6. Filling system tools free design for cleaning.
7. Occupy less space, using flexible.
8. Optional: (1) protection cover with switch(2) date coding system(3)vacuum and gas flushing system.
9. Special circumstances can be customized according to customer requirements.
10-150ml Rotary Cup Filling Sealing Machine 1200-3600 Cups / H Big Capacity

Product Detail

10-150ml Rotary Cup Filling Sealing Machine 1200-3600 Cups / H Big Capacity

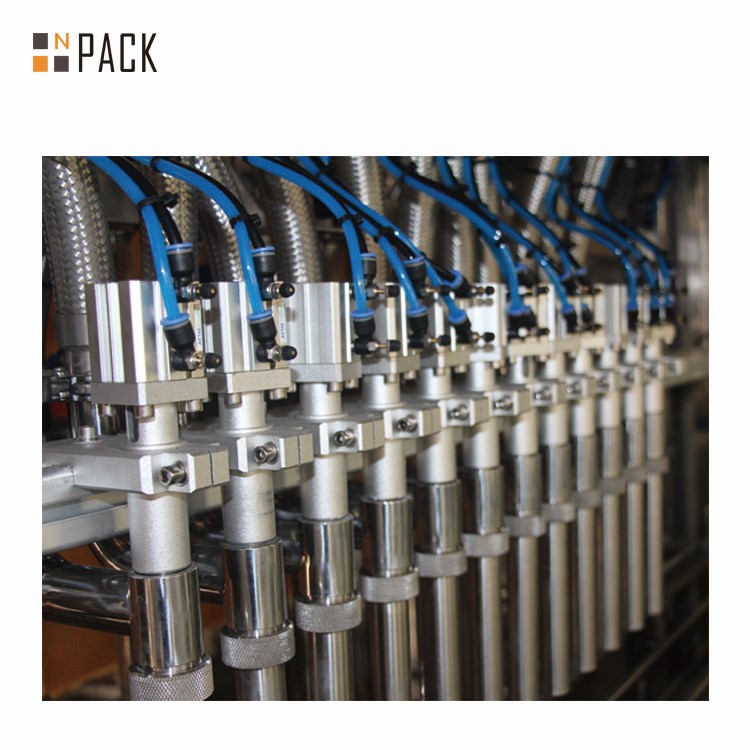

Filling nozzle

Function: Diving nozzle in order to avoid foam when filling

6 wheels capping machine

Brand: Npack
Function:round blttle capping machine

small bottle capping head

Function:The star wheel be used for filling and capping.

► Company introduction

NPACK with more than 10 years experiences in this industry and large technical in our factory.There are 12 senior engineers.And,we have export our machine to more than 60 countries,such as Vietnam,Thailand, Malaysia, American,Indonesia, Nigeria,Egypt,and so on. There are more than 1,000 foreign customers.

it is a professional manufacturer and supplier of various types of liquid, powder, paste, granular packing machines since 2008.And in 2012, NPACK stepped into a new stage, and supply one stop packaging solution. And turn key projects for customers, now NPACK is one of the top brand in packaging machineries, and get a good Reputation in the fields of Chemicals &cosmetics, Pharmaceuticals and Food industry. In 2014, NPACK invested a new Plant for printing self adhesive labels( stickers labels in rolls) SHANGHAI RENYI PRINTING TECHNOLOGY CO.,LTD

► Our advantages

1. more than 10 years experiences in this industry and large technical in our factory.

2. have export our machine to more than 60 countries.

3. There are more than 1,000 foreign customers.

4. There are 12 senior engineers in our factory.

5. The material of our machine is 100% 314/316 stainless steel.

► Our Services

Training:

1. We offer machines training system, the customer can choose training in our factory or in customer workshop. The normal training days are 3-5 days.
2. We offer operation manual to customer.
3. We offer training video and machine operation video to customer.
4. We offer remote control service, if customer do not know how to operate and use the machine.

Installation:

We will dispatch engineers to carry out installation and debugging of the equipment in buyer's place if requested. The cost for International double ways air tickets, accommodations, food and transportations, medical shall be paid by Buyer for the engineers. Buyer shall fully cooperate with Supplier's engineer and make all the installation condition ready to work.

Warranty:

The Manufacturer shall guarantee the goods are made of Manufacturer's best materials. The sold machine will be guarantee in one year, in the guarantee year, any spare parts broken due to supplier's quality issue, the spare parts will be supplied free for customer, customer need to pay the freight cost if the parcel weight more than 500gram.

brand

► Payment & Delivery

Payment Term	T/T ,L/C,West Union,Paypal
Delivery Time	within 30 days on receipt of your deposit
Warranty	one year
Installation Commission	The buyer should bear all cost of visa, traffic, hotel and food

► FAQ
Q: Are you factory or trading company?
A: We are factory focus on designing, manufacturing, assembling, installing and debugging various types of filling machines, capping machines and labeling machines since 2008.

Q: Can you send a video showing how your machine works ?
A: Certainly, we have made all our machine's video.

Q: Do you make test before shipment?
A: We always test machine fully and make sure it works smoothly before shipment.

Q: What is the term of payment and trade terms?
A: We accept T/T, Western Union, MoneyGram, Alibaba Trade Assurance payments.
Trade Term : EXW,FOB,CIF,CNF.

Q: What's the MOQ and warranty?
A: There is no MOQ , welcome to order, we promise 24 month warranty .

Q: What kind of package for shipping?
A: Use the basic stretch film wrap around the whole machine,and packed with exported wooden case , also can be according to your requirements.
